CONTROL PANELS & PLC’S
We offer engineered and fabricated electrical equipment and control cabinets to meet our customer’s specific needs. Our product offerings include but are not limited to junction boxes, power control panels, lighting contactor panels, automation panels, and combiner boxes.
Overview
We have extensive experience in dealing with a wide variety of third-party manufacturers of VFD and control system equipment which allows us to remain vendor neutral and produce the best solutions for customer specific applications. All panel work is completed by our team of electrical fabricators who ensure the highest quality product is delivery every time. All enclosures are certified to CSA Standards C22 No. 94.1 & 94.2 and conform to UL Standard 50 & 50E.
ELECTRICAL EQUIPMENT & CONTROL PANEL OFFERINGS
PUMPJACK
CONTROLLERS
LOW VOLTAGE
VFD ENCLOSURES
PLC/DC's

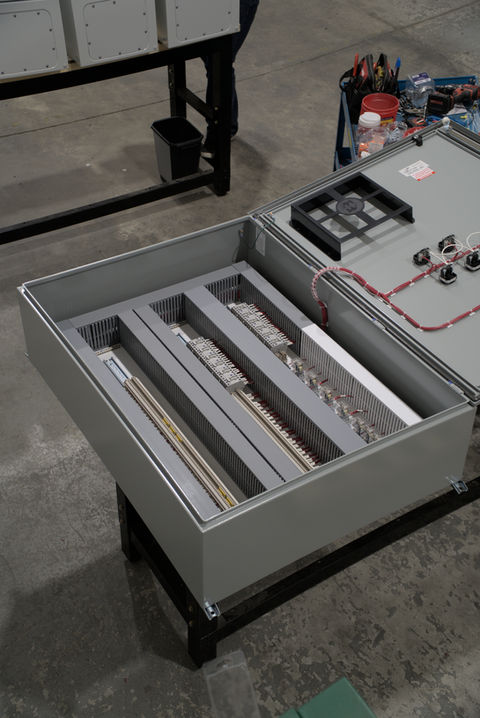

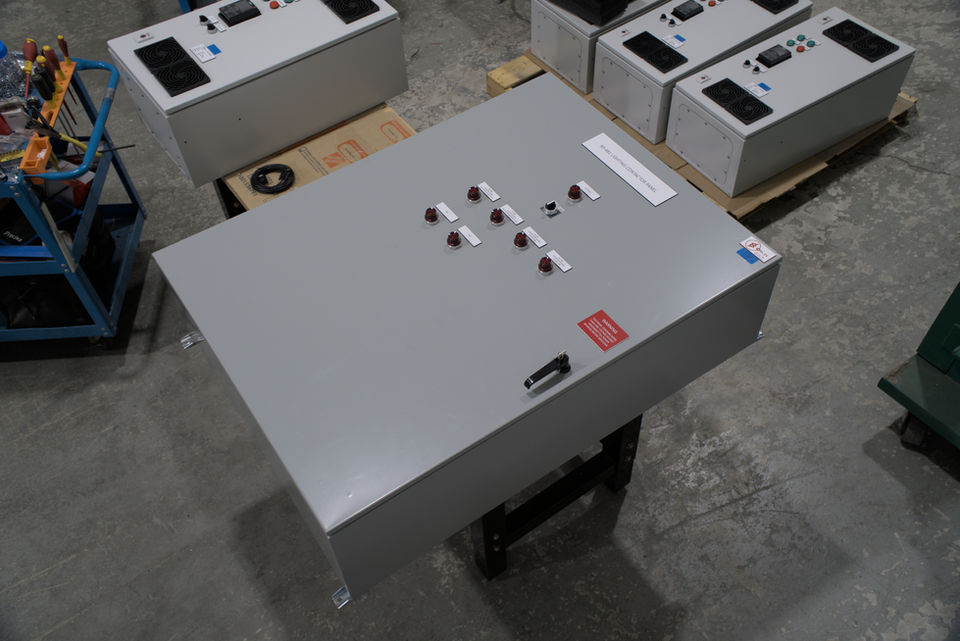

CONTROL CABINETS
-
Process Panels
-
Power Control Panels
-
Motor Control Panels
-
Automation Panels (PLC’s)
-
HMI Panels
-
Pump Jack Control Panels
-
Variable Frequency Drive (VFD) Control Panels
-
Automatic Transfer Switch Panels
-
And More!
SWITCHGEAR &
LOAD BREAK SWITCHES
CLASS 1 DIV 2
ELECTRICAL DISTRIBUTION PANELS
CLASS 1 ZONE 2 PANELS
-
CLASS I, ZONE 2, Aex nA IIC Gc T4
-
Ex nA IIC T4 Gc
-
CLASS I, DIVISION 2, Gp A,B,C,D
-

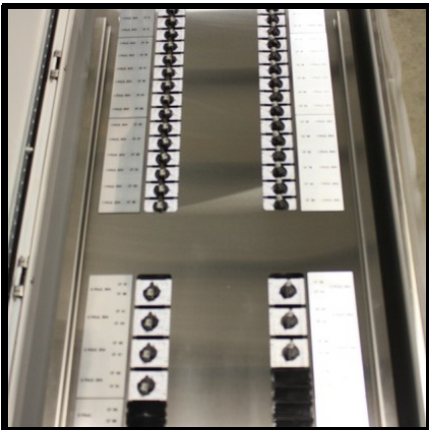

SynergEX Panel Boards
-
Max. 225A/Phase (Three Phase Max.)
-
Max. 480 VAC
-
Max. 180A Main Disconnect Switch
-
Max. 225A Main Breaker (External Enclosure)
-
10kA Short Circuit Current
-
NEMA 3R, 4, 4X
-
TEMPERATURE CLASS: T4
-
-40 Deg C TO +55 Deg C
CERTIFICATION
CONFORMS
ELECTRICAL RATING
ENCAPSULATED CIRCUIT BREAKERS
► 120/240 VAC
-
1 and 2 Pole
-
10, 15, 20, 25, 30, 35, 40A
-
1-Pole EPD/GFI
-
Auxiliary and Signal Contact
► 208/120 VAC
-
1, 2 and 3 Pole
-
10, 15, 20, 25, 30, 35, 40A
-
1-Pole EPD/GFI
-
Auxiliary and Signal Contact
► 480/277 VAC
-
1, 2 and 3 Pole
-
10, 15, 20, 25, 30, 35, 40A
-
Auxiliary and Signal Contact
MATERIALS
-
Enclosure - 316L Stainless Steel or Painted
-
Sheet Steel (Optional)
-
Observation Window - Poly Carbonate
-
External Parts (Hinges, Screws, Washers, 1/4 Turn Handles, Gland Plates) - 316L Stainless Steel
-
Internal Parts (Screws, Washers, Backplate Fasteners) - 304 Stainless Steel
-
Gaskets - Silicone
-
Dead Front Panel - 316L Stainless Steel or Painted Steel
-
Bus Bar Lugs - Nickel Plated Copper
-
Bonding/Ground Assembly - Brass
-
Encapsulated Circuit Breaker - Flame Rated Nylon
FEATURES
SAVE TIME & MONEY
-
Easy to open and access with only ¼ turn (versus up to 70+ bolts in a traditional enclosure)
-
Lower maintenance costs
-
Lightweight design and reduced footprint for easier installation with reduced labor costs
MULTIPLE PRODUCT VARIANTS
-
12-84° circuits with disconnect switch
-
Single sided designs for use in areas with limited space such as I-beam and scaffold mounting
-
Modular bus sections for multi-pole circuits
WIDE OPTIONS
-
Optional removable gland plates for easy addition of entries
-
Optional enclosures with heaters and breather drain
-
Optional viewing window or pilot light indicators for breaker status indication
ENCAPSULATED BUS SYSTEMS
-
ASTA certified encapsulated bus system
-
480 VAC and 250A max rated
-
Engineered to suit custom requirements
-
Quick and clean installation
ENCAPSULATED BREAKERS
-
Proven reliability from Eaton’s tamper proof encapsulated breakers
-
Encapsulated chassis eliminates wire connections for a touch safe design, decreasing the potential for hot spots and reducing costly downtime when servicing.
CUSTOM FRIENDLY
-
Right from accommodating multi-pole breaker circuits to horizontal or vertical coupled enclosures, we make sure we meet your needs.
-
Custom engineered panels can be special inspected to conform to CSA/UL Standards
